 | Economical Although made of expensive stainless steel, the water tank is economical thanks to the minimized material loss resulting from rational design and press processing, there being no need for anti-rust paint, and its light weight that reduces transportation costs. |
 | Clean and hygienic There is no rust due to stainless steel’s resistance to corrosion, and since ultraviolet light does not penetrate, there is no algae, making it clean and hygienic. |
 | High durability Stainless steel sheets, which are 1.5 times stronger than mild steel and 6 times stronger than FRP, are pressed into a predetermined form, such that a 4-sided panel is assembled by welding to further improve strength. |
 | Aesthetically pleasing and long-lasting The unique luster of the material and its construction harmonize with the processes for water pressure resistance, meaning the material does not deteriorate and can be used semi-permanently. |
 | Good heat and impact resistance There is no need to worry about damage in the event of a fire or external impact, and it is designed with seismic dampeners. |
 | Various capacities for easy on-site construction Since the standardized panels are welded together according to the tank’s capacity, size options are diverse, and the lightweight panel assembly makes it easy to construct on-site. |

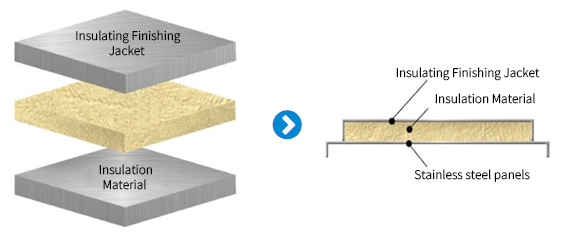

We manufacture and install insulated all-in-one panels as opposed to the existing method of insulating water tanks by welding and assembling the stainless steel panels, insulation materials, and finishing materials separately on-site, which leaves the quality of the product dependent on the operator's skill.
 |  |
| Protective integrated panel section | Integrated insulated panel combination method |
The corners, the most vulnerable areas of a square paneled tank, are bent into a seamless rounded shape to increase water pressure resistance and improve hygiene.
 |
It greatly enhances stability by compensating for the phenomenon of pressure concentration at the corners that appears in conventional welded water tanks.

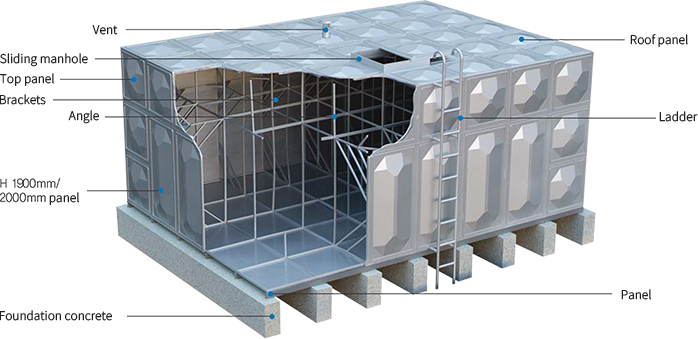

After assembling the frame, panels are welded to make it stronger and have better performance.
 |
Stainless Steel Panel Size according to water tank height
| PANEL | 1,000 (950) | 1,500 (1,400) | 2,000 (1,900) | 2,500 (2,350) | 3,000 (2,850) | 3,500 (3,300) | 4,000 (3,800) | 4,500 (4,250) | 5,000 (4,750) | 5,500 (5,200) | 6,000(5,700) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | |||||||||||
2000x1000 |  |  |  |  |  |  |  |  |  |  |  |
1900x950 (1900x450) | |||||||||||
| 1000x1000 (1000x500) | |||||||||||
| 950x950 (950x450) |
※Panel thickness may change depending on capacity and order specifications.
